Item No
| 08260A | Snap on type complete set |
| 08260B | Clip on type complete set |
| 08260C | Clip on type for TTL complete set |
| 08260A-2 | Charger 110V |
| 08260A-2A | Charger 230V |
Features
•Loupes mounted - Extra Light comes with a mount attachment for any Magnification Loupes.
•Daylight- allows the doctor to see tissues and teeth in the oral cavity in their true color, just like in natural day light.
•Narrow beam - allows the surgeon to illuminate the oral cavity, without dazzling the patient.
•Adjustable slop angle - beam's angle can be adjusted up to 18 degrees to fit indivisual surgeons and tasks.
•Lightweight - Extra light weight just 15 grams, applying minimal pressure on the forehead or the nose, when mounted on glass.
Specifications
Light:
| Brightness on 30cm distance | 40,000 Lux |
| Color temperature | 6,000(±1,000) °K |
| Illuminate beam radios on 30cm distance | 100 mm |
| Dimension | 31(L) x 24(Ø) x 39(H) mm |
| Weight | 15 grams |
| LED lifetime | 50,000 hours |
Controller:
| Input | 4.2 |
| Battery capacity | 3,600mA |
| Full battery charging time | 8 hours |
| Average operating time | 8.5 hours |
| Dimension | 146(L) x 65(W) x 23(D) mm |
| Weight | 142g |
Charger:
| Type | AC/DC Adapter |
| Input | 100~240V |
| Input voltage | 50-60Hz |
| Wall outlet plug | Euro / US |
| Output power | DC 4.2V / 1,000mA |
Accessories
-

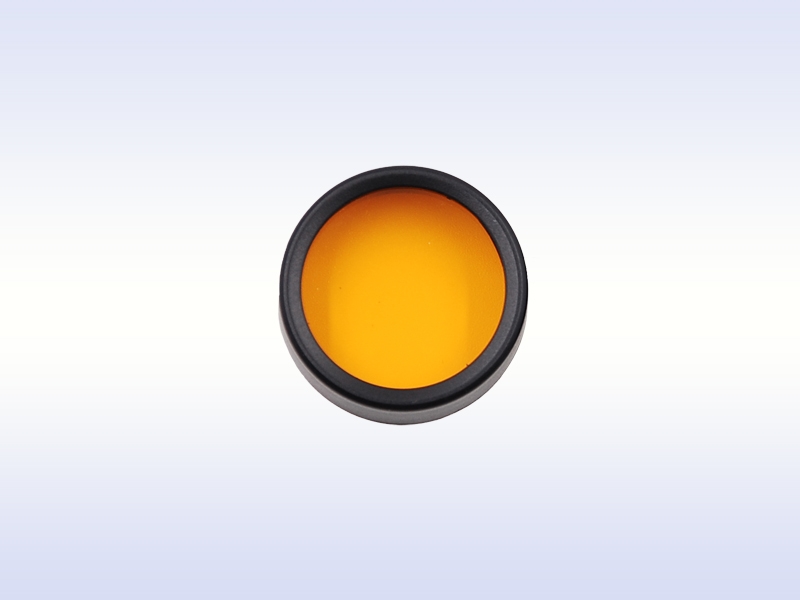

Yellow Color Filter
Item No. 08262-8
